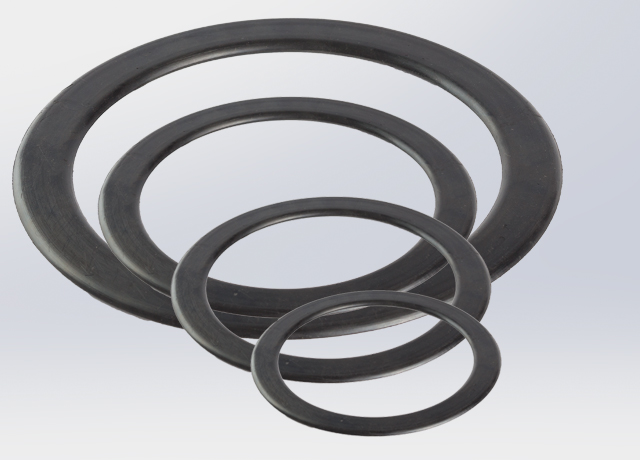

With its ethylene propylene based seat and deformation preventing steel ring, our type 8000 steel reinforced elastomer gasket is a long-lasting sealing element. It can be used in the applications between the temperature of -40/+110 C by its asbestos free design.

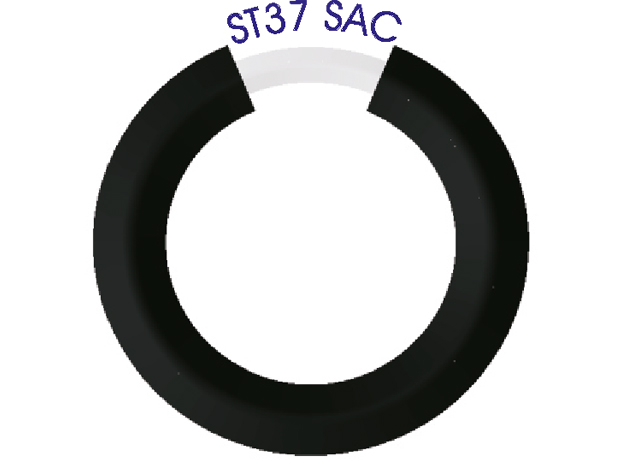

These gaskets are designed according to the DIN 2690 standard and are available for every DIN flange from DN25 up to DN2500 in PN10 and PN16 execution. The EPDM gasket is reinforced with a St37 steel core.

60±5 IRHD SBR. EN 681-1 WC (L)

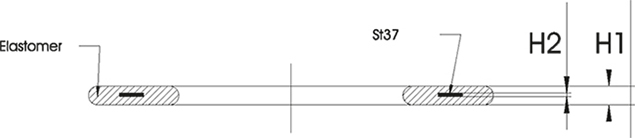

DIN	Diameter	Outer Diameter	H1 mm	H2 mm
25	34,50	68,00	4,00	1,00
32	43,50	78,00	4,00	1,00
40	49,50	88,00	4,00	1,00
50	61,50	102,00	4,00	1,00
65	77,50	122,00	4,00	1,00
80	90,50	138,00	4,00	1,00
100	116,00	162,00	5,00	1,00
125	141,50	188,00	5,00	1,00
150	170,50	218,00	5,00	1,00
200	221,50	278,00	6,00	1,50
250	276,50	335,00	6,00	1,50
300	327,50	395,00	6,00	1,50
350	359,50	450,00	7,00	1,50
400	411,00	505,00	7,00	1,50
450	462,00	555,00	7,00	2,00
500	513,50	615,00	7,00	2,00
600	616,50	720,00	7,00	2,00
700	718,50	820,00	8,00	2,00
800	819,00	930,00	8,00	2,00
900	920,00	1030,00	8,00	2,00
1000	1022,00	1140,00	8,00	2,00
1200	1225,00	1350,00	8,00	2,00
1400	1426,00	1560,00	8,00	3,00
1500			8,00	3,00
1600	1626,00	1780,00	8,00	3,00
1800	1826,00	1985,00	8,00	3,00
2000	2026,00	2210,00	10,00	3,00
2200			10,00	3,00
2300			10,00	3,00
2500			12,00	4,00
3000			12,00	4,00
